Specim FX10

Specim FX10 camera series is designed for industrial and laboratory use. Specim FX10 cameras work in a line-scan mode in the visible and near-infrared (VNIR) area; Specim FX10 in the 400-1000 nm region, and the color optimized Specim FX10c camera in the 400-780 nm region.

DATA SHEET

MAIN FEATURES AND BENEFITS

FLEXIBILITY

Free wavelength selection from 224 bands within the camera coverage

FAST OPTICS

High sensitivity and detection accuracy

HIGH SPEED

More FPS than you ever need

SMALL SIZE

Flexible and easy installation

EASY INTEGRATION

Communicates with commercial analysis softwares through standard interfaces

SPECIM FX10 CAMERAS ARE BEST SUITED FOR:

VEGETATION & AGRICULTURE

PHENOTYPING

COLOR & DENSITY IN PRINTING

FOOD QUALITY

MORE THAN MEETS THE EYE

Specim FX10 operates on visible light and near-infrared region, revealing things in more detail than human eye or RGB camera ever could. It can detect bruised apple or diseased plant before the damage is otherwise visible.

One significant application for Specim FX10 is accurate color measurement. For that purpose, we have developed a color-optimised version, Specim FX10c.

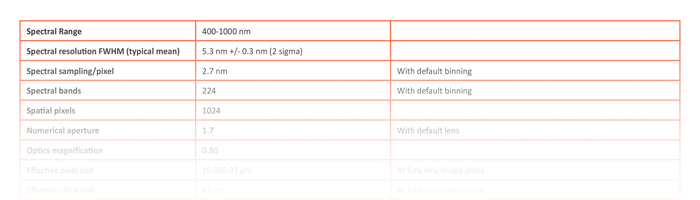

SPECIFICATIONS

Spectral Range400 – 1000 nm
Spectral Bands224
Spectral FWHM5.5 nm
Spatial Sampling1024 px
FOV38° (Other options available)
Frame Rate327 FPS full frame
9900 FPS with 1 band selected
F-numberF/1.7
Camera SNR (Peak)600:1
Camera InterfaceCameraLink or GigE Vision
Dimensions150 x 85 x 71 mm
Weight1.26 kg
Integrated shutter and order blocking filterYes
