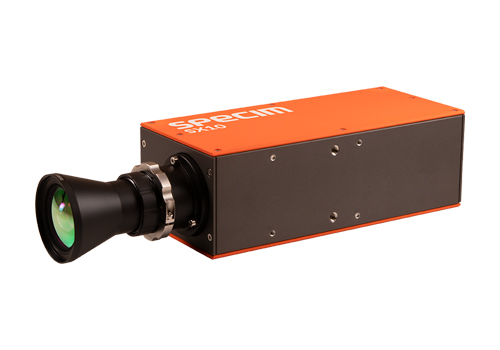

Specim SX10
Research-grade VNIR (400-1000 nm) Precision
The Specim SX10 is a high-performance VNIR line-scan hyperspectral camera designed for demanding research, laboratory, and advanced imaging applications.
Covering the 400–1000 nm spectral range, it combines a high spatial pixel count with excellent signal-to-noise performance and fine spectral resolution, enabling users to capture subtle spectral differences and fine spatial details with high precision.
Capture subtle spectral differences and fine spatial details
For demanding hyperspectral imaging applications, spatial and spectral detail go hand in hand.
The Specim SX10 provides the spatial resolution needed to capture fine structures and small features, while its fine spectral resolution enables detailed characterization of subtle spectral differences across the VNIR range.
With 1560 spatial pixels and 680 spectral bands, the SX10 combines fine spatial detail with the spectral information needed to distinguish subtle differences across the sample.
MAIN FEATURES AND BENEFITS
High spatial resolution:1560 pixels
Frame rate 275 fps
Spectral flexibility: Select from 680 bands
High-speed GigE interface for easy integration
Built-in Advanced Image Enhancement (AIE)
Unified spectral calibration for cross-device consistency
TYPICAL APPLICATIONS
The Specim SX10 is ideal for demanding VNIR hyperspectral imaging applications such as:
Capture detailed spatial and spectral information for the characterization of thin films and coatings.
Study fine structures and spectral variations across complex geological samples.
Investigate spatial and spectral differences in food samples for advanced research and analysis.
Capture detailed VNIR spectral information for research into vegetation characteristics and variations.
Non-destructively investigate materials and fine spatial features in artworks and cultural heritage objects.
