SPECIM FX SERIES

SMALL, FAST & AFFORDABLE – THE FIRST HYPERSPECTRAL CAMERAS
SPECIFICALLY DESIGNED FOR INDUSTRIAL MACHINE VISION

SEE THE INVISIBLE, COLLECT MORE INFORMATION THAN IS AVAILABLE WITH ANY OTHER INSPECTION METHOD

Specim FX series hyperspectral cameras give reliable and accurate classification results based on the target’s chemical composition. The non-contact, non-destructive optical method offers 100% imaging coverage. Inspect various end products and different system properties without changing the camera.

Specim FX series cameras are the first hyperspectral instruments designed specifically for industrial machine vision. The cameras’ high frame rate meets the industry speed requirements, and robust structure and small size allow flexible installation location.

EASY INTEGRATION

Specim FX cameras are easy to install on existing and new sorting lines. The material identification result, pixel by pixel, is available to commercial machine vision systems through a standard interface. The data analysis results are communicated to the sorting machines, such as robot hands or air jets, through commercial machine vision software solutions.

UNIFIED, COMPARABLE DATA

Unified wavelength calibration between individual Specim FX cameras guarantees that the data received from different units are comparable. Different camera units in one system work seamlessly together, and adding cameras is easy and doesn’t need calibration.

FOCUS ON THE RELEVANT

The multiple regions of interest (MROI) feature allows focusing on relevant areas, reducing the amount of recorded data. Depending on the application needs, the MROI areas can be flexibly selected and even changed on the fly.

UPGRADEABLE FIRMWARE

Get the latest version of Specim FX firmware and update the camera onsite quickly and easily with the software package provided by Specim.

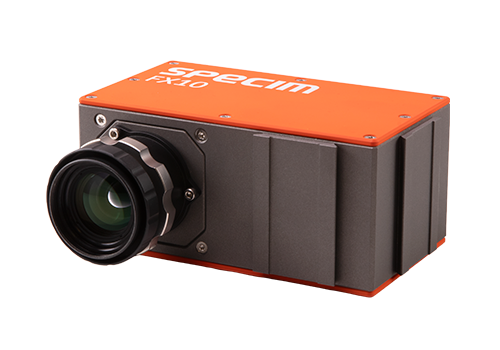

SPECIM FX10

VNIR (400 – 1000 nm)

Specim FX10 camera series is designed for industrial and laboratory use. Specim FX10 cameras work in a line-scan mode in the visible and near-infrared (VNIR) area; Specim FX10 in the 400-1000 nm region, and the color-optimized Specim FX10c camera in the 400-770 nm region.

Specim FX10 cameras are best suited for:

  • Vegetation & agriculture
  • Phenotyping
  • Color & density in printing
  • Display & light source inspection
  • Food quality
Specim FX10
Specim FX17

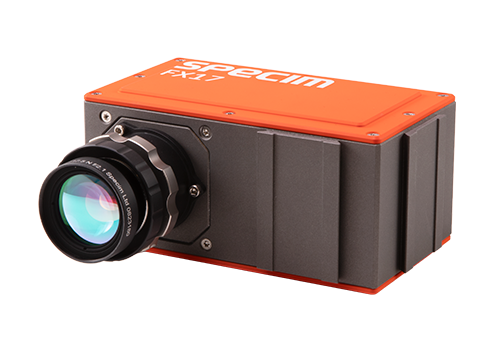

SPECIM FX17

NIR (900 – 1700 nm)

Specim FX17 camera is designed for industrial and laboratory use. It works in a line-scan mode, and collects hyperspectral data in the near-infrared NIR region (900 to 1700 nm).

Specim FX17 is best suited for:

  • Food & feed quality
  • Waste sorting
  • Recycling
  • Moisture measurement
  • Threat detection, Security

SPECIM FX50

MWIR (2.7-5.3 μm)

Specim FX50 is a high-speed, accurate, and robust hyperspectral camera designed especially for industrial environments. It works in a line-scan mode and collects hyperspectral data in the Medium Wavelength Infrared (MWIR) region (2.7-5.3 μm).

Specim FX50 is best suited for:

  • Black plastic sorting
  • Geology & mining
  • Metal industry
  • Safety and Security
Specim FX50
Specim FX120

SPECIM FX120

LWIR (7.7 -12.3 μm)

Specim FX120 is an advanced thermal push-broom hyperspectral camera with the full LWIR spectral range of 7.7 to 12.3 µm.

Specim FX120 is best suited for:

  • Geology & Mining
  • Environmental analysis
  • Thermal anomaly detection
  • Safety and Security
