Specim AFX10

Specim AFX10 is a VNIR hyperspectral imaging solution with an HSI camera, a small and powerful computer and a high-end GNSS/IMU unit in one compact enclosure that can be installed on multiple drone types.

DATA SHEET

MAIN FEATURES AND BENEFITS

EASY TO MOUNT AND OPERATE

All-in-one casing means that Specim AFX has minimal cabling, which makes it simple to mount, and the fully automated data acquisition following the mission flight plan allows easy operation.

HIGH-QUALITY DATA

Thanks to F1.7 aperture, Specim AFX uses the available light efficiently. That combined with the image enhancement algorithm results in the high quality of the collected data.

FOCUS ON WHAT IS RELEVANT

The multiple region of interest (MROI) feature allows focusing on the areas that are relevant, which reduces the amount of recorded data. The MROI areas can be flexibly selected and even changed on the fly, based on the application needs.

DATA PROCESSING

Specim AFX data can be processed with Specim CaliGeo PRO software. It is also fully compatible with the commercial software solutions such as ENVI, which allows fast data analysis and application creation.

SPECIM AFX10 CAMERAS ARE BEST SUITED FOR:

VEGETATION CLASSIFICATION AND SPECIES IDENTIFICATION

WATER QUALITY ANALYSIS

WETLANDS MONITORING

WILDLIFE POPULATION STUDY

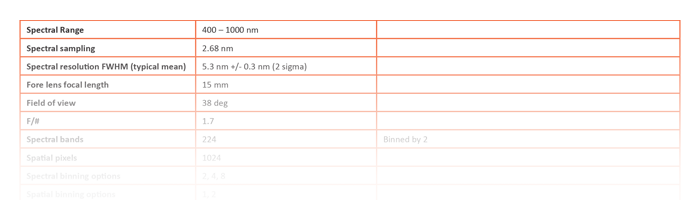

SPECIFICATIONS

Spectral Range400 – 1000 nm
Spectral Sampling2.68 nm
Spectral Resolution5.5 nm
Spectral BandsUp to 224
Spatial Pixels1024
Field of View38 deg
F/#1.7
Frame RateUp to 330 fps
Dimensions131 x 152 x 202 mm
Weight2.1 kg
