ImSpector N17E

SPECIM ImSpectors spectrographs provide a straightforward, high performance, yet cost-effective method of integration. When combined with scientific grayscale InGaAs cameras the combination provides a line-scan Spectral Imaging device.

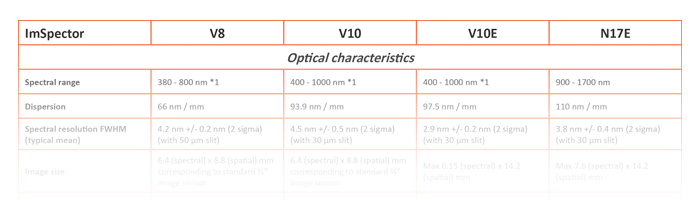

DATA SHEET

SPECIFICATIONS

Spectral Range900 – 1700 nm
Spectral resolution5 nm
Dispersion110 nm / mm
Image sizespectral 7.6 mm, spatial 14.2 mm
Numerical apertureF/2.0
